G-Code generator for Direct Energy Deposition additive manufacturing

G.L.O.W.

Different printing shapes and substrates
- Supports single tracks, thin walls and cubes printing shapes.
- Supports rectangular and circular substrates.
Easy visualization

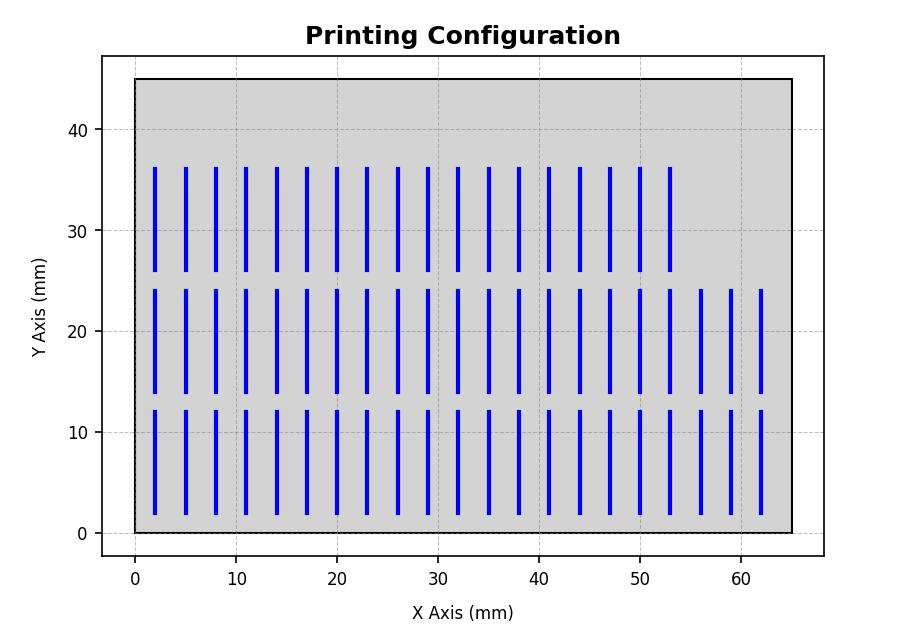

- Offers easy visualization of printing configuration.

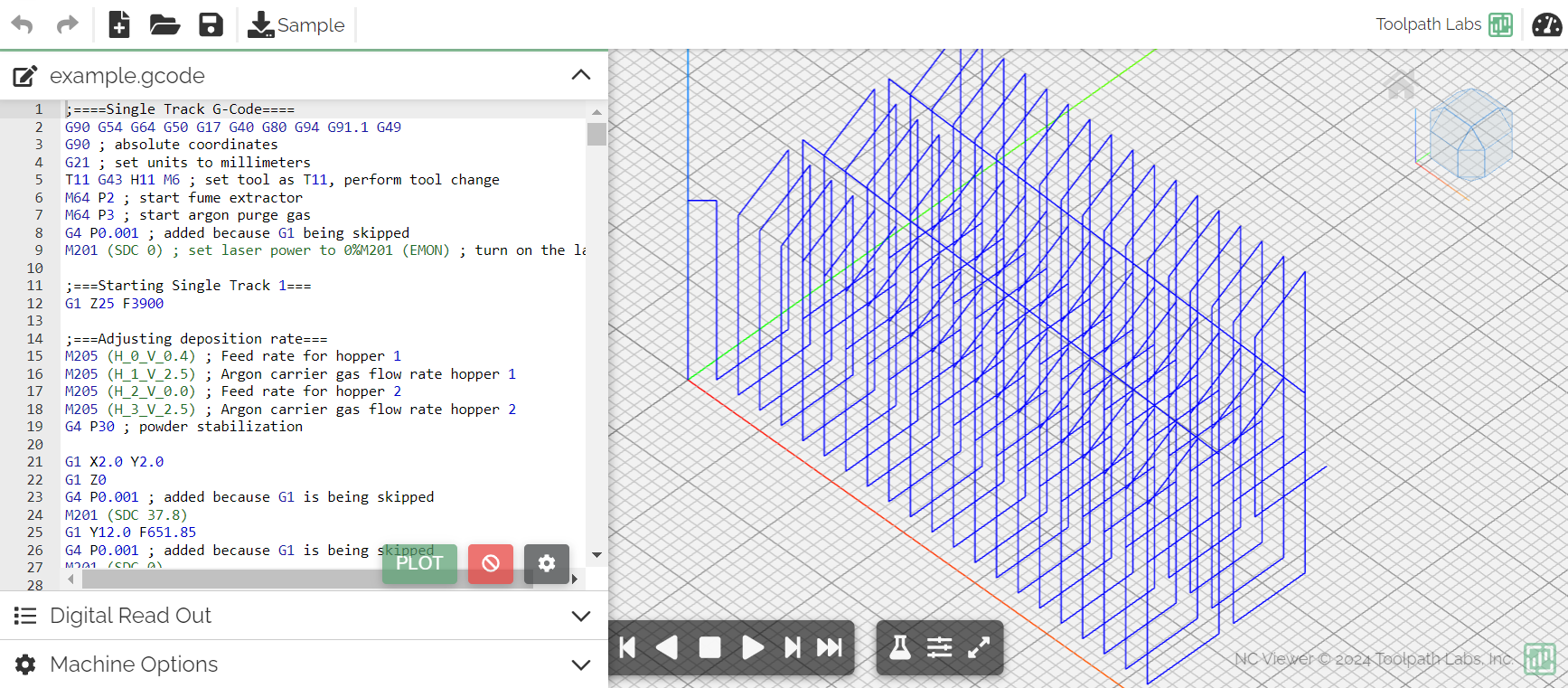

- Enables visualization of GCODE result with integrated NC Viewer.
Flexible configurations

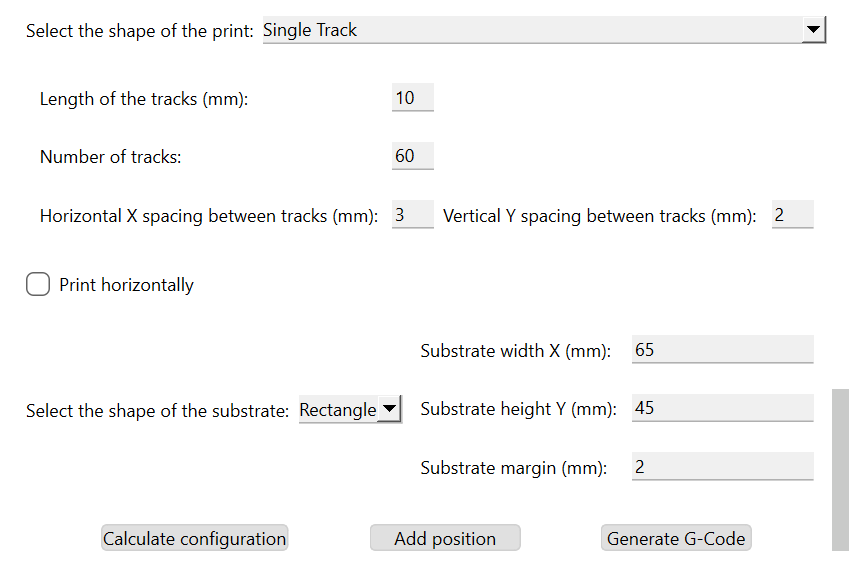

- Provides intuitive and easy parameter configuration for various applications.
- Supports customized CNC machine specific codes within its application.
Machine learning prediction model
- Provides machine learning model for geometry prediction, using the code from xshang93/AIDED.
Camera compatibility
- Allows camera integration for process monitoring.

To install G.L.O.W. app you can:

Download glow_1.0_setup.exe from the repository and run the installer (no repository cloning required) or
Clone the repository and follow glowapp.ipynb instructions (allows for customization in code).

To run the source code, you should clone the repository into your machine and open the directory.

git clone https://github.com/ArthurJWH/GLOW.git

From there, it is recommended to create a virtual environment and install the requirements as such:

pip install -r requirements.txt

After installing the packages, you can run the code in src/main.py.

Alternatively, you can execute:

pip install -e .

This will allow you to run the code with glow command in the terminal.

To generate the GCODE it is required a CSV file with some printing parameters, such as example.

idx	laser_power	scanning_speed	rpm_1	rpm_2	width	height	hatch_spacing
1	37.8	651.85	0.4	0	1.00199	0.342144	0.3
2	38.75	242.9	0.4	0	1.00199	0.342144	0.3
3	40.7	693.55	0.4	0	1.00199	0.342144	0.3
4	32.55	358.75	0.4	0	1.00199	0.342144	0.3
5	52.45	349.15	0.4	0	1.00199	0.342144	0.3
…	…	…	…	…	…	…	…
